Multi Batch Operations

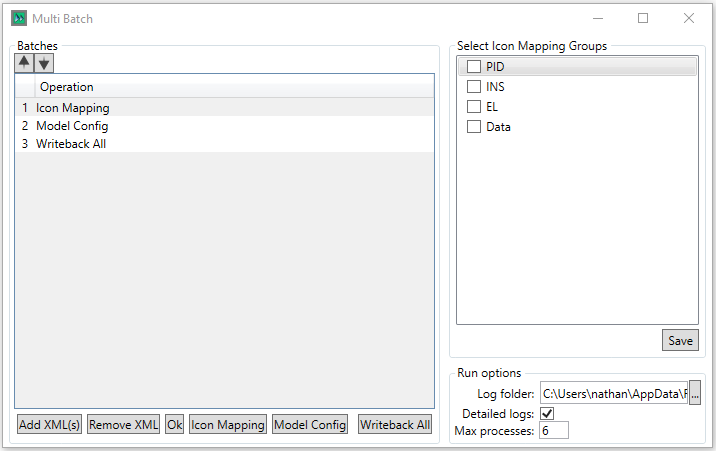

Multi Batch Operations allows the user to select a pre-defined xml file (or files) of batch operation instructions to be carried out on the drawing(s) as part of the import process. The batch files are created in the drawing cleanup tool

  • Add XML button allows the user to select which batch xmls they wish to use
  • Remove XML button allows the user to remove their currently selected XML from the list
  • Icon Mapping button adds an icon mapping rule process instruction to the list, the icon mapping rules to run are selected via the checkboxes in the right panel shown above, and seved with the Save button button exits the
  • Model Config button adds a model configuration rule process instruction to the list, the model configuration rule groups to run are selected in the same manner as the icon mapping rule groups
  • Writeback All button adds an operation to writeback all external data
  • UpDownArrows button allows the user to change the order in which the multi batch operations are run

The Run options allow the user to define the logging and the number of CPU processes the multi batch operation will use

The Ok button saves the batch
