Generate Integrity Export

This form allows the user to output all failed rule results to a .hds file for use with the PID Integrity Viewer. Selecting this option will open the following form:

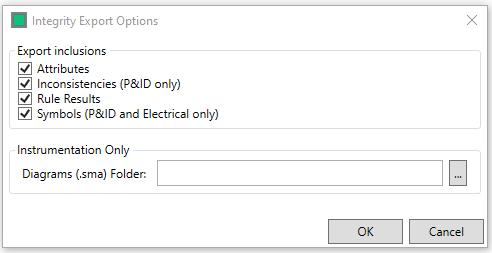

Here the user selects what they wish to export to hds, and defines a SPI instrumentation diagrams folder if they wish to export graphics for rules run on SPI.

Clicking moves to the export location dialog.

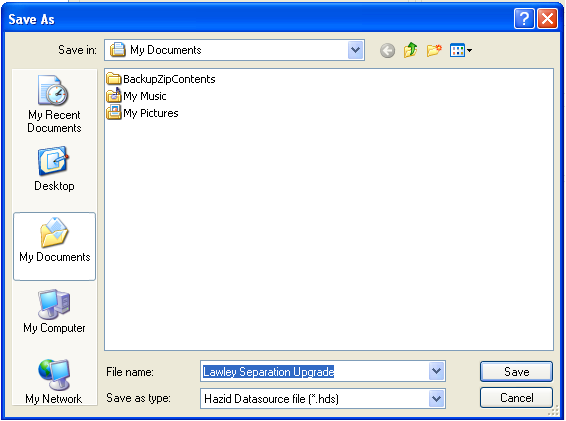

Here user can select the destination and name for the .hds file. Selecting Save will begin the export:

The export is complete when this message appears:
