Safety Analysis Checklist Rule

Safety Analysis rules are used to form checklists, to ensure that the data present in the drawing is not conflicting. Safety analysis rules can be used to endure that a PSV has a set point that is below the pressure at which the vessel it is protecting will rupture, or that a pumps rated discharge pressure does not cause the maximum operating pressure of the pipe to which it is connected to be exceeded. Safety Analysis rules can also be used to ensure that the configurations of equipment required for certain functions (i.e. sampling) to be carried out safely are in place on the drawings or that project tagging and data requirements are met.

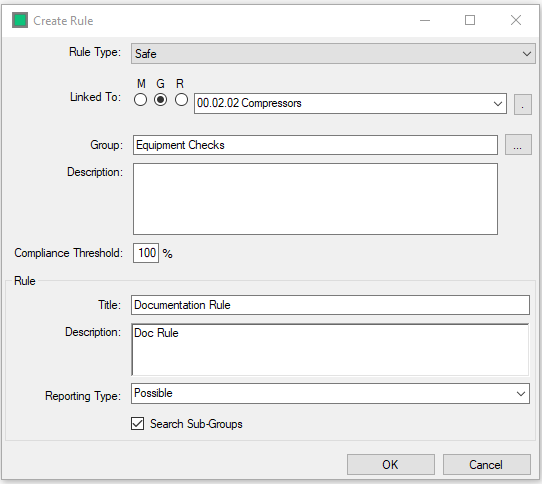

When creating the rules you must fill in the details in the Rule Creation form

All Fields are Mandatory in the Rule Creation form.

  • Rule Type - Select the Custom Rule Type that you wish the rule to be created under. If creating a rule from selecting a Custom Rule type it is automatically entered.
  • Linked to - The Model Group or Hazid Integrity Knowledge Model that the Rule is linked to. You may select the linked group or model from the drop down list. M filters to models Only. G filters to Group only R allows the user to enter a Regex search. You may choose the model or group from the model tree by using the Browse icon.
  • Group - The Rule Group you wish the Rule to be stored under. To create a new rule group while creating the rule type the name into the box. When creating a new Rule Group this way you will be prompted to add a comment. Use the Browse button to select a rule group already created. The user can also enter a description here
  • Compliance Threshold - The percentage of rules within the group that need to pass in order for the rule group to be considered compliant for the dashboard report.
  • Title - A short title for the Rule
  • Description - A description of the purpose of the rule
  • Reporting Type - Hazid Integrity will report the results in two ways (The reporting type can be toggled on or off in the Rule Analysis results):
    • Mandatory - The rule result will always be reported in the Rule Analysis results
    • Possible - The Rule result will only be reported in the Rule Analysis results if failed
  • Search Sub-Groups - By Default Rules entered at a Model Group Level will only run on those Model Items directly bellow them. Selecting to Search Sb-Groups allows the rules to be run on all children of the Model Group.

Select Ok to continue creating the rule and move to the Rule Details

Select Cancel to stop the rule creation.
